PJSLT2D Mini Parking System (Stacker) without
pit (two layers)-Chain type
PJSYY2D Mini Parking System (Stacker) without
pit (two layers)-Hydraulic type
|
|
|

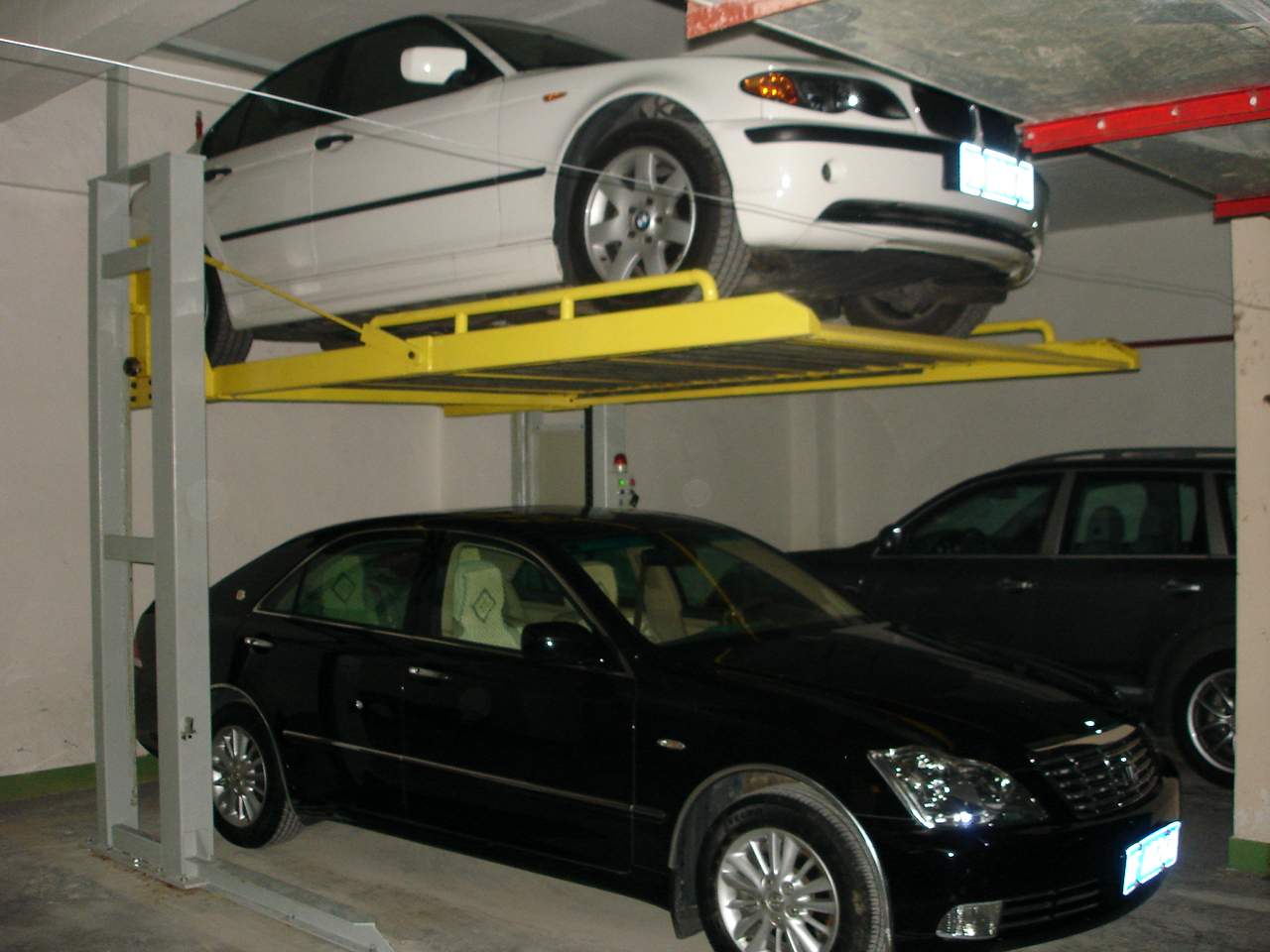

PJSLT2D/PJSYY2D Parking
Stacker
Working principle: Vehicles may
directly go in or out from the lower position.
When the upper carrying platform is used to park
or retrieve cars, the vehicles in the lower
position must be driven away, then the upper
platform falls down to the floor to let the car
enter or drive out by lifting mechanism.
Characteristics
Easy to install and low
maintenance
Can be dismantled and
relocated
Allows parking of 2
cars in one parking space
Saving on parking costs
Machine can be rented
or leased
Can be fitted with
optional roof for out door use.
Double systems can be
banked together to provide double the number of
cars parked in a given space.
|
Model |
PJSLT2D |
PJSYY2D |
|
Platform size |
length |
4000mm |
4000mm |
|
width |
2200mm |
2200mm |
|
Car
capacity |
length |
Less
than 5000mm |
Less
than 5200 |
|
width |
Less
than 1900mm |
Less
than 1900mm |
|
height |
Less
than 1550mm |
Less
than 1550mm |
|
speed |
vertical |
5m/min |
Max:3.5m/min(±10％) |
|
motor |
vertical |
2.2kw |
1.5KW |
|
Parking space |
2 |
2 |
|
load |
Less
than 1700kg |
Less
than 1700Kg |
|
power |
3
phase 380V，50HZ |
3
phase 380V，50HZ |
|
entry |
Drive
in |
Drive
in |
|
Driving mode |
Chain
type |
hydraulic type |
|
Operation method |
pushbutton |
Manual
operation by key |
|
