PSH
lift-sliding mechanical parking system
Lift-Sliding Parking System (PSH) is the
mechanical parking system for parking and
retrieving the cars by lifting or sliding the
car platforms.

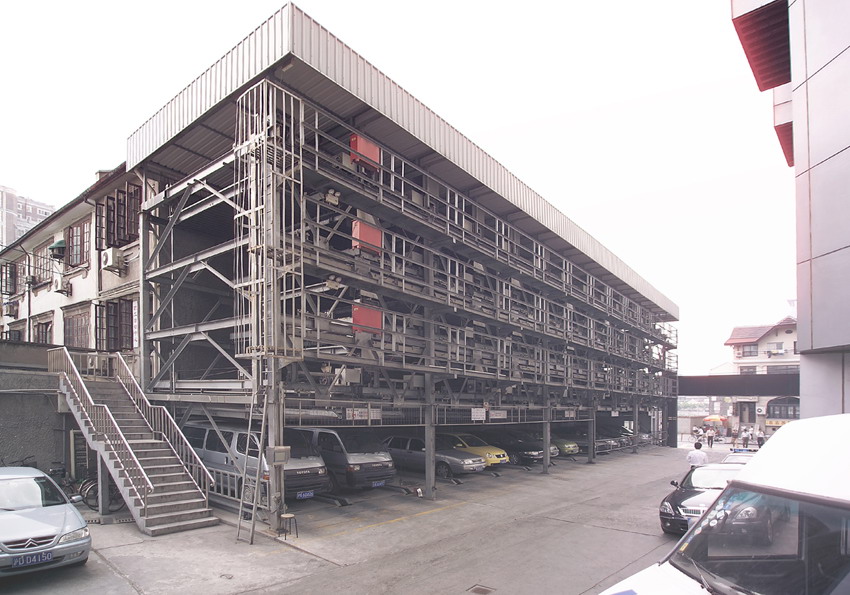

The system can provide 2~5-layer
parking lots with high space utilization ratio,
so it is suitable for the plane area. It is
driven by chain or steel rope, so it is stable
for operation, low in noise and energy
consumption.
|
Characteristic:
1. Store and retrieve the
car by
lifting of the elevator and
traveling of the cross-carrier;
2. Find the required parking
units through sequence operation only by
pressing the button one time; it can also be
upgraded to be intelligent card-swiping
operation;
3. Steel structure, which is
safe and has long life;
4. Convenient for indoor and
outdoor erection;
5. Safety devices: Limit
switch, wheel barrier, safety hook, running time
our control, emergency stop switch, running
alarm, photo sensor, chain jacket, leakage
device, overload protection and driving chain
cover.

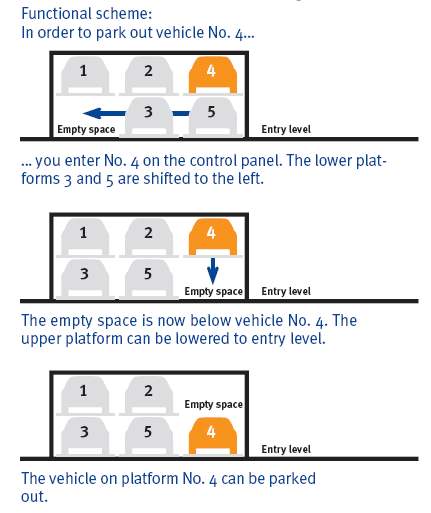

Operation Principle of the PSH
Parking system
Upper-layer platforms (pallets)
only can rise and descend; middle-layer
platforms can perform the action of both
rise-and-fall and sliding, and the bottom-layer
platforms can slide only. There is one vacant
platform on the middle layer and lower layer so
that upper-layer platforms can complete parking
(retrieving) through changing the position of
vacant platform by sliding the middle or lower
platforms. You can directly park or retrieve the
cars from or on the bottom-layer platforms
without need of operating the parking system.
For the adaptability of this
model of parking system, it can be combined and
arranged at will according to the landform and
space, and the dimensions can either be big or
small, and there is little requirements for the
civil engineering. | | |
