Heat consumption coefficient for the installed door :
K=1.6W/㎡K
Heat consumption coefficient of 40mm panel sheet:
K=1.0W/㎡K

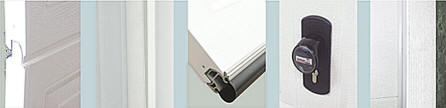

★     Double color coating armor plate: the face and back of door panel adopt same color coating armor plate.

★     Polyurethane foam heat preservation: the middle of door panel is filled with

high quality polyurethane foam and the foam density is up to 40kg/m3. Therefore,

 the door panel is provided with good strength, heat preservation and sound

insulation capability.

★     Steeliness seal at both ends;

★     Reinforcing mat: the steel reinforcing mats are embedded in the fixed

gemel and trolley bracket to ensure the enough strength of door body parts

and more fastness of the connection.

★     Outboard reinforcing rib: when the door width is beyond 4800mm, it should

be configured with outboard reinforcing rib to ensure the enough strength of the

 door.

★    Door panel thickness standard: 40mm, 63mm

★     The max width of 40mm door panel is 6500mm

★     The single door panel height is between 430～550mm, which can be

selected according to the height of door body

There are two kinds of garage door panel:

1)Economical ordinary garage door: the splice point of the door panel adopts special designed concave-convex structure. Compared to the ordinary step structure, it will ensure a better splice slot of the door panel and better

smoothness of the door surface.

Economical ordinary garage door panel CKM-100

Series No.

 Type

Type of opener

Panel style

Color of The panel

Surface finish of hardware









CKM-100

CKM-150

S50

  Ordinary panel small rectangle)





 (White)

 (Brown)

 (Grey)

Standard: galvanized

Optional :white spraying plastic

Black spraying plastic

white electrophoresis

Black electrophoresis

Special color plastic-

      spray

CKM-160

S60

CKM-180

S80

CKM-190

S90

CKM-166

S66

CKM-1**/L

S**

Ordinary Panel big rectangle)

CKM-1**/S

S**

Ordinary panel (three straight lines)

CKM-1**/M

S**

Ordinary Imitation wood grain panel(three Straight lines)

2053#
 2)Pinch resistant type garage door which meet the European safety standards:The door panel adopts more human based safety design. Together with integral pinch resistant gemel, it can achieve double pinch resistant protection function of the face and back door panel and bring you the closest protection.The special arc structure design of the panel connection will bring a better resolution to the distortion of connection of traditional pinch resistant garage door caused by strength shortage. Therefore, our product is more practical than others.

 Pinch resistant type garage door panel CKM-200

Series No.

 Type

Type of opener

Panel style

Color of The panel

Surface finish of hardware









CKM-200

CKM-250

S50

  Pinch resistant panel (small rectangle)



 (White)

 (Brown)

 (Grey)

Standard: galvanized

Optional :white spraying plastic

Black spraying plastic

white electrophoresis

Black electrophoresis

Special color plastic-spray

CKM-260

S60

CKM-280

S80

CKM-290

S90

CKM-266

S66

CKM-2**/L

S**

 Pinch resistant panel(big rectangle)

CKM-2**/S

S**

Panel resistant(three straight lines)

CKM-2**/M

S**

pinch resistant Imitation wood grain panel(three Straight lines)

2053#

   For details, please contact us.

　
