J1.6 axis mounting
gas meter |
| |
| |
J1.6 axis mounting gas meter is a kind of axis
mounting gas meter, it is Diaphragm Type Gas
Meter used to measure the total quantity
of the gas volume passing through the
pipeline; it is suitable for mediums of
liquefied petroleum gas, natural gas &
Town gas, which consumed in industrial &
residential, etc.
The meters
comply with relevant requirements of National standard
GB/T6968:1997 and international standard
OIML-R31:1995. It
has following features: Good reliability, small
volume, light weight, specious nice appearance,
convenient installation, etc.
Functions and
features:
The frame is a founding of cold-rolled steel;
and the core is made of metal, rubber and
engineering plastic which can resist acid and
alkali, some strong & hard antiseptic
measures such as spraying plastic with static
electricity and tin plating are taken to
process the inner & outer parts of the
made-products. It has the features of high
quality, stable function, accurate calculating
and long service-life. |
| |
| Technical parameters
|
| |
| Items
|
Unit |
J1.6 |
| Nominal
Flow Rate
|
m3/h
|
1.6 |
| Max.
Flow Rate
|
m3/h
|
2.5 |
| Min.
Flow Rate
|
m3/h
|
0.016 |
| Operating
pressure range
|
kPa
|
0.5—30
|
| Total pressure loss
|
Pa
|
<200
|
| Max. Limit error
|
Qmin≤Q≤0.1Qmax
|
%
|
±3
|
| 0.1Qmax≤Q≤Qmax
|
%
|
±1.5 |
| Nominal
rotation volume
|
dm3
|
1.2
|
| Joint size specification
|
mm
|
M30*2
|
| Max.
Reading (not returned)
|
m3 |
9999.999
|
|
|
|

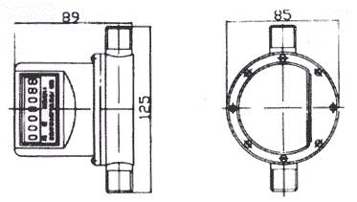

| Outline and mounting
dimension |
| |
|
|
| | | |
|
| |
| |
|
|
| | |
| |
