DTSI566-C01
|
|
|
|
|
|
|
|
|
| |
 |
Three phase PLC (power
line carrier) watt-hour meter |
| |
| |
DTSI566
three phase PLC electronic watt-hour meter is
kind of new developed intelligent meter, which
conforms to relative IEC standard, it has been
tested through long term running at rigorous
working site, It adopts large scale
integration circuit as key component with
advanced processing and simple structure to
realize high reliability, tamper proof,
enduring onerous load, high accuracy, error
stability, low power consumption and strong
communication ability.
The meter is based
on power line carrier and communication
technique. It uses LV power line as its
communication channel. Its core technique is
software technique and power frequency
modularized technique. Energy meter data can be transmitted to the remote
centralized meter reading system of upper
level in the mode of power line carrier style
by using the mode identification and fuzzy
processing technique.
DTSI566
series Three Phase electronic watt-hour meter
conforms to the standards as follow: GB/T
17215-2002 (IEC61036-2000) |
| |
| Technical parameters
|
class:
1.0
rated
voltage: 220V,
230V, 240V
rated
current: 5(30)A, 10(40)A,
15(60)A, 20(80)A
power
loss: 0.5W
operating temperature:
-30℃-+60℃
|
|
Main features
|
The meter has
function of communication relaying for each
other to realize remote meter reading.
The expanding
frequency carrier and power frequency
modularized technique to realize power line
carrier communication. It features high
accuracy, high reliability and strong reading
capability.
LSI for electronic
metering IC, advance workmanship and compact
structure
Designing for long
term operation up to 15 years
High accuracy, stable
error and excellent linearity, no calibration
needed within service life
Provision of
tamper-proof, against fraudulence
Cutting off power
supply without payment and remind the user to
pay bill (max load under 60A) (Optional)
|

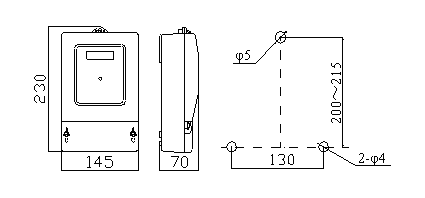

| Mounting dimension |
 |
|
Meter reading mode
|
Common meter reading
The current total
energy, the state of relay, the meter ID can be
read by CMRI
PLC meter reading
Automatic meter reading
system can acquire the current total energy, the
state of relay, through power line carrier
interface and remote control the state of relay
|
| | | |
|
| |
| |
|
|
| | |
| |
