Rolling Door Operator
RDO-2D is used to control the roll up door, drive unit and mechanism system separate design The motor gear is also improved. The cover box effectively prevents the dust. LED courtesy light replace the traditional bulb one so the power consumption lower and the control board more reliable. 2DA has backup battery.

Power input

230Vac 50(60)Hz

Working voltage

24Vdc

power consumption

120W

Continuous rotation time

20 times for every hour (30kg load)

Traveling noise

<55db

Min travel setting

300mm

Max. lifting force

500N (~50kg)

IP

Ip20

Auto courtesy light close

3 minutes

Traveling speed

16cm/s

Max. lifting height

5000mm

Temperature range

-20ˇăC+55ˇăC

Download Catalogue

Download Manual
RDO-3D is for the wider and higher doors, the maximum door can be 6 meters wide and 3.5 meters high, or the same area door body. It is double drive and the door travel will be smooth. So the both side balance can be assured. RDO-3D is the biggest lifting force door operator at latest.

Power input

230Vac 50(60)Hz

Working voltage

24Vdc

power consumption

180W

Continuous rotation time

20 times for every hour (30kg load)

Traveling noise

<55db

Min travel setting

300mm

Max. lifting force

800N (~80kg)

IP

Ip20

Auto courtesy light close

3 minutes

Traveling speed

16cm/s

Max. lifting height

5000mm

Temperature range

-20ˇăC+55ˇăC
ˇˇ ˇˇ

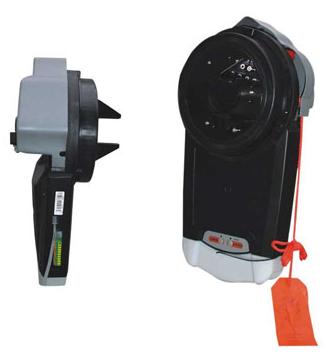

RDO-5D is used to control the roll up door, drive unit and mechanism system all-in-one design. It is easy to install and the motor gear is also improved. The cover box effectively prevents the dust. LED courtesy light replace the traditional bulb one so the power consumption lower and the control board more reliable. Specially designed detachable fork is very convenience.

Power input

230Vac 50(60)Hz

Working voltage

24Vdc

power consumption

120W

Continuous rotation time

20 times for every hour (30kg load)

Traveling noise

<55db

Min travel setting

300mm

Max. lifting force

500N (~50kg)

IP

Ip20

Auto courtesy light close

3 minutes

Traveling speed

16cm/s

Max. lifting height

5000mm

Temperature range

-20ˇăC+55ˇăC
